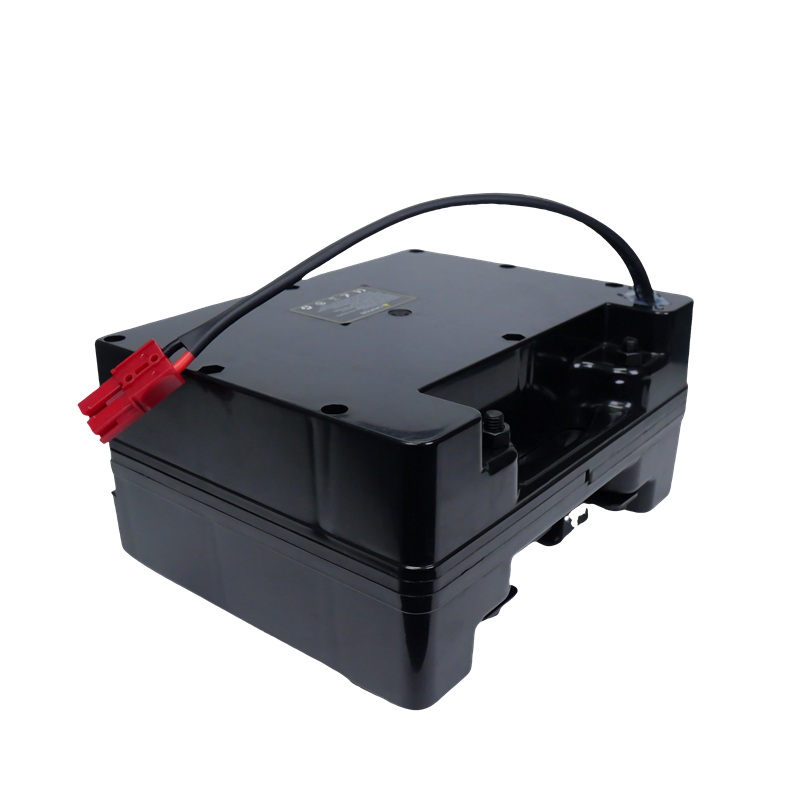

Factory Sale Removable Lithium Ion Battery 24v 10ah 20ah 30ah 40ah 50ah Electric Wheelchair Lithium Battery Pack
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):31(days),2-10(pieces):35(days),11-50(pieces):40(days),>50(pieces):To be negotiated(days)
Model Number:
WL8018
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Capacity
10 - 50Ah, customized capacity available
Voltage
24V/36V/48V/52V, optional
Type
Lithium Battery Pack
Cycle Life
1000 cycles, ≥ 1000 Cycles
Fit motor
250W 350W 500W 750W 1000W
Item
Inner Tube Hidden Ebike Battery for folding electric bicycle
Charger
3-5A
Certification
CE
Cell type
Chinese Grade A/ Japan Korea brand cell
Cathode Materials
lithium ion
Operating Temperature(℃)
35
Max Load Quantity(cells)
4
Composed type
7S4P 7S10P
Application
Electric Wheelchairs, Golf Carts, Electric Bicycles/Scooters
Product Description
FUPOWER electric wheelchair battery parameter table | ||
Model No.: | FU-LYK-1 | |
Nominal Voltage: | 24V/36V/48V/52V(Optional voltage) | |
Nominal Capacity: | 10-40Ah, customized capacity available | |
Standard Charge Current： | 5A | |
Max Charge Current: | 15A | |
Fit for Motor: | 350W 500W 750W 1000W | |
Continouns Discharge Current: | 20A optional, can be customized | |
BMS Protection Function: | Over charge, Over discharge,Over current, Short circuit, Teperature, Balance act. | |
BMS Communication protocol: | Need additional requirements--- RS485/RS232/CAN BUS/APP/GPS positioning) | |
Battery size: | 240*115*190mm | |
Cell Brand | 3.7V Japan Korea brand optional | |
Cell Brand-China | 3.7V Chinese Brand Grade A cell | |
Battery Resistance | ≤100mΩ | |
Discharge Cut-Off Voltage: | upon request (Please consult customer service) | |
Charge Voltage: | upon request (Please consult customer service) | |
Cycle Life: | 80% capacity after 800-1000 cycles | |
Cell Type: | LI(NiCoMn)O2 18650 | |
Cell Capacity: | 2500mAh,2600mAh,2900mAh.3000mAh,3200mAh,3300mAh,3400mAh.3500mAh | |
Warranty: | 12 months | |
Cell Weight: | 18650-45g | |
Battery Pack Weight: | as required | |
Charging Working Temperature: | 0~45℃ | |
Discharge Working Temperature: | -20~60℃ | |
Storage Temperature: | -10~40°℃ | |
Retention of charge : | ≥95%(store in one month) | |
Fit Motor: | Gear motor, Gearless motor, Brushless DC motor, bafang motor, Tongsheng motor, Golden motor, etc. | |
Fit for bike: | Electric bike, E-scooters, Folding bike, City bike, folding ebike | |
Details Images
Recommend Products
Our Customers Positive Feedback
Company Profile
FAQ
all can be customized as your requirement.
Q: Does your e-bike battery come with charger?
A: Charger is option, please contact with us.
Q: Can you accept OEM/ODM service?
A: Yes, we supply OEM/ODM service as customers request
Q: Can we get samples for free?
A: Sorry we need to charge samples costs，but we could refund it when you place the order.
Q: What's your warranty for products?
A: Normally, we will offer one year warranty but we would return you new ones due to quality problems.
Q: What's your MOQ?
A: In order to developing our business, there is no strict MOQ.
