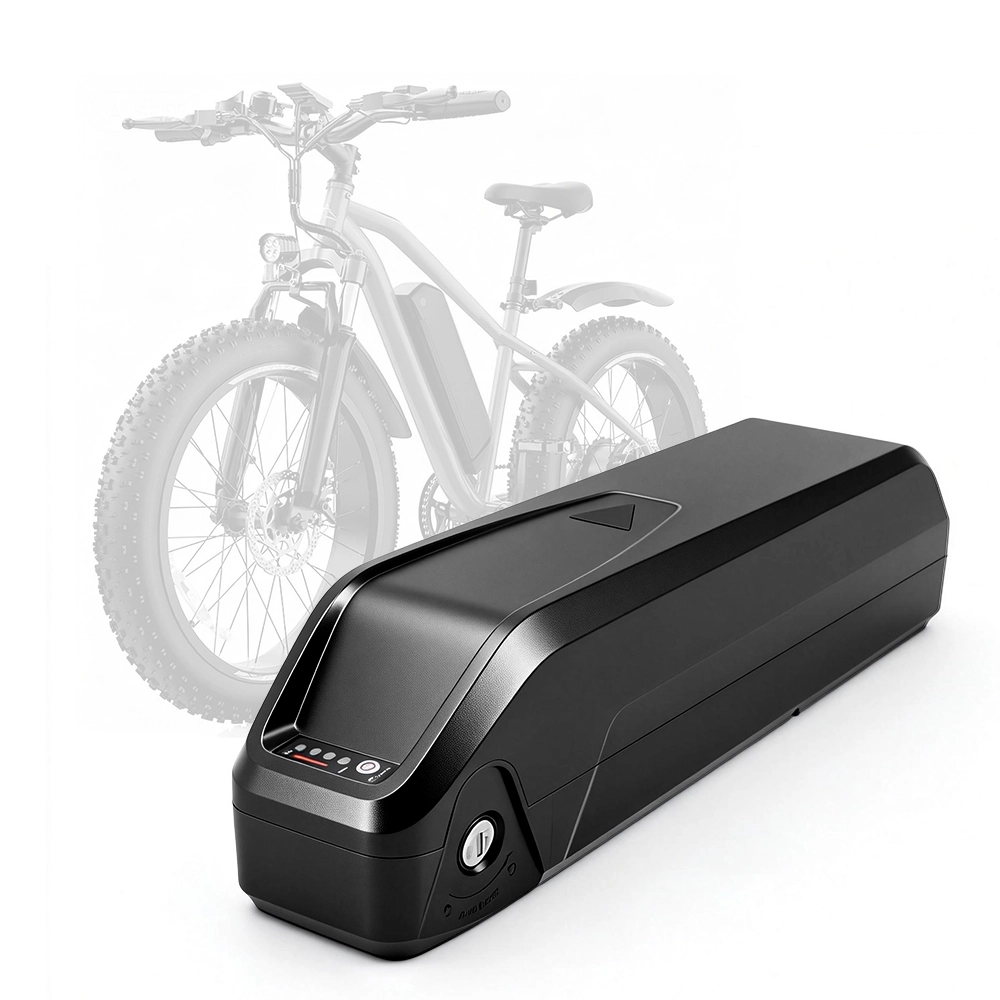

High Capacity 36v 48v 10.4ah 12ah 13ah 14ah 17.5ah 20ah Li-ion Akku For Pilot M20 Mukkpet Ridstar Q20 Ekxbike T1 Battery
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):31(days),2-10(pieces):35(days),11-50(pieces):40(days),>50(pieces):To be negotiated(days)
Brand Name:
FUPOWTE
Model Number:
WL8109
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
BMS
20-60A, according your motor power
Voltage
36V/48V/52V/60V/72V, optional
Type
Lithium Battery
Cell
L-G/Sam-sung/China Brand Top Grade A 21700 5000mah Cell
Cycle Life
≥ 1000 Cycles
Place of Origin
Guangdong, China
Charger
3A
Certification
CE
Battery Weight
About 7KG
Origin
China
Battery Dimension
397*94*122mm
Max capacity
78pcs 18650 cell, 52pcs 21700 cell
Battery Style
Downtube
Nominal Voltage V
48 V, 36 V, 52 V, 72 V, 60V
Compitable Bike
electric bike, Mountain Bike, City bike, folding bike, fat tire bike, Road Bike, Cruiser bike, Hybrid Bike, tricycle bike, bmx bike
Battery Position
Down Tube
Battery Type
Lithium Battery, Li-Ion, Lithium, Lithium Ion, Rechargeable
Composed Type
13s4p, 10s4p, 13s3p, 14s4p
Nominal Capacity
15-25Ah, customize capacity available
Application
Gift, Electric Vehicle, electric bike, Electric Scooter, E-bike, Electric motorcycle
Company Profile
Product Description
|
FUPOWER polly electric bicycle battery parameter table
|
||
|
Model No.:
|
FUPO-ALX097
|
|
|
Nominal Voltage:
|
36V/48V/52V/60V/72V (Optional voltage)
|
|
|
Nominal Capacity:
|
15Ah 20Ah 25Ah 28Ah 30Ah 35Ah, Customized capacity
|
|
|
Max Configuration:
|
78pcs 18650 cells, 52pcs 21700 cells
|
|
|
Standard Charge Current：
|
5A
|
|
|
Max Charge Current:
|
15A
|
|
|
Fit for Motor:
|
1500W 2000W
|
|
|
Continouns Discharge Current:
|
40A-80A optional
|
|
|
BMS Protection Function:
|
Over charge, Over discharge,Over current, Short circuit, Teperature, Balance act.
|
|
|
BMS Communication protocol:
|
Need additional requirements--- RS485/RS232/CAN BUS/APP/GPS positioning)
|
|
|
Battery Size:
|
397*94*122mm
|
|
|
Cell Brand:
|
3.7V Japan Korea brand optional
|
|
|
Cell Brand-China:
|
3.7V Chinese Grade A brand
|
|
|
Battery Resistance
|
≤100mΩ
|
|
|
Discharge Cut-Off Voltage:
|
upon request (Please consult customer service)
|
|
|
Charge Voltage:
|
upon request (Please consult customer service)
|
|
|
Cycle Life:
|
80% capacity after 800-1000 cycles
|
|
|
Cell Type:
|
LI(NiCoMn)O2 21700 Cell
|
|
|
Cell Capacity:
|
4500mAh,4800mAh,5000mAh,
|
|
|
Warranty:
|
12 months
|
|
|
Cell Weight:
|
18650-45g,21700-75g
|
|
|
Battery Pack Weight:
|
as required
|
|
|
Charging Working Temperature:
|
0~45℃
|
|
|
Discharge Working Temperature:
|
-20~60℃
|
|
|
Storage Temperature:
|
-10~40°℃
|
|
|
Retention of charge :
|
≥95%(store in one month)
|
|
|
Fit Motor:
|
Gear motor, Gearless motor, Brushless DC motor, bafang motor, Tongsheng motor, Golden motor, etc.
|
|
|
Fit for bike:
|
Electric bike, E-scooters, Folding bike, City bike, Mountain bike, Fat bike, Cruiser bike, Trike bike, ect.
|
|
Details Images
Factory Real Production Photos
Recommend Products
Why Choose Us
FAQ
Q: Why did you choose our battery?
A: Grade A cell, standardized protection plate, high quality, high safety.
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we use original A grade Brand cell of domestic brand,all can be customized as your requirement.
Q: Does your e-bike battery come with charger?
A: Charger is option, please contact with us.
Q: Can you accept OEM/ODM service?
A: Yes, we supply OEM/ODM service as customers request.
Q: Can we get samples for free?
A: Sorry we need to charge samples costs, but we could refund it when you place the order.
Q: What's your warranty for products?
A: Normally, we will offer one year warranty but we would return you new ones due to quality problems.
Q: What's your MOQ?
A: In order to developing our business, there is no strict MOQ.
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we use original A grade Brand cell of domestic brand,all can be customized as your requirement.
Q: Does your e-bike battery come with charger?
A: Charger is option, please contact with us.
Q: Can you accept OEM/ODM service?
A: Yes, we supply OEM/ODM service as customers request.
Q: Can we get samples for free?
A: Sorry we need to charge samples costs, but we could refund it when you place the order.
Q: What's your warranty for products?
A: Normally, we will offer one year warranty but we would return you new ones due to quality problems.
Q: What's your MOQ?
A: In order to developing our business, there is no strict MOQ.
